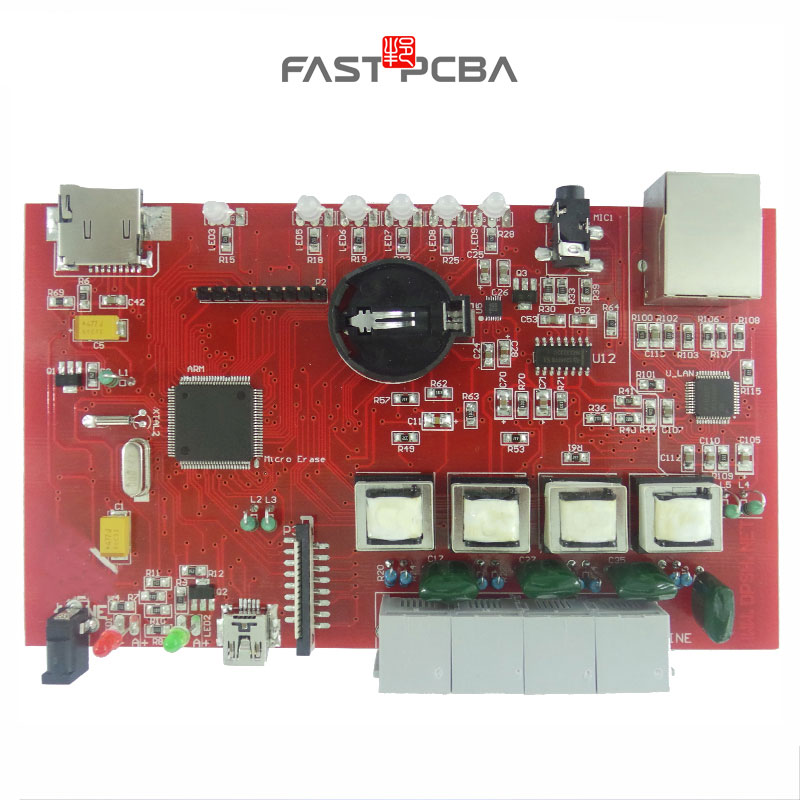

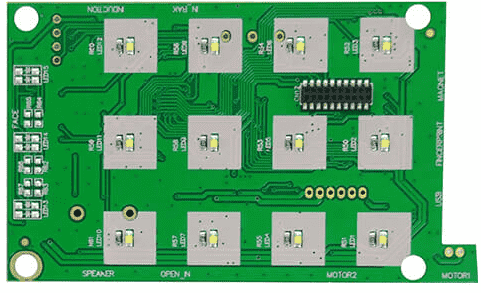

94v0 circuit board for smart home locks in the smart home industry / building intercom

Place of Origin:

China

Brand Name:

fastpcba

Base Material:

94v0

Copper Thickness:

1OZ

Board Thickness:

3mm

Min. Hole Size:

0.1mm

Min. Line Width:

3 mil

Min. Line Spacing:

3mil

Surface Finishing:

HASL, OSP, Immersion Ag/ Cu/ Golg/ Tin

Solder mask color:

Green Oil

OUTLINE:

Drilling

Payment term:

T/T, Western Union, Paypal, L/C etc

Service:

Customize Service

Shipping Term:

EXW, FOB, CIF

Scope of application: Banks, government departments (focus on safety), and places with high security and privacy requirements such as hotels, school dormitories, residential quarters, villas, and hotels.

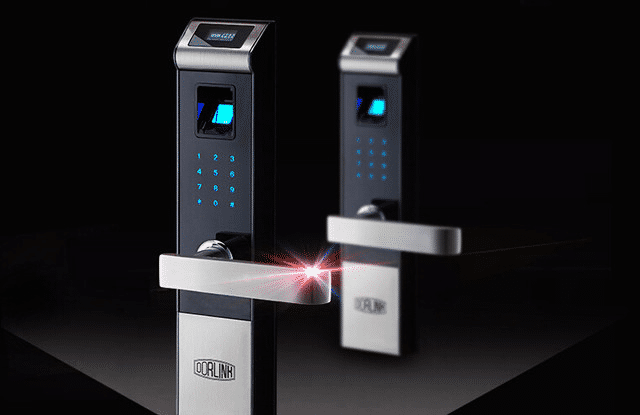

The intelligent door lock control scheme is an important step in the embedded development of the door lock, so that wireless data conversion and wireless control can be realized on the hardware. The intelligent door lock mainly adopts the serial port wifi module TLN13UA06, which is a new generation embedded Wi-Fi module product. The software and hardware interfaces are fully compatible with TLG10UA03, Bluetooth module and Bluetooth chip, which are small in size and low in power consumption.
