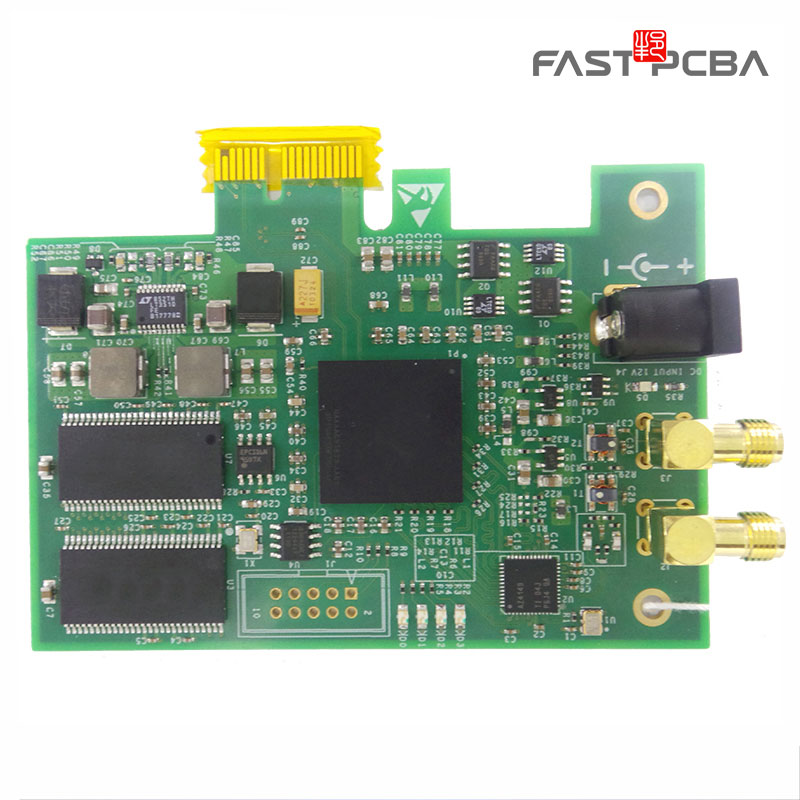

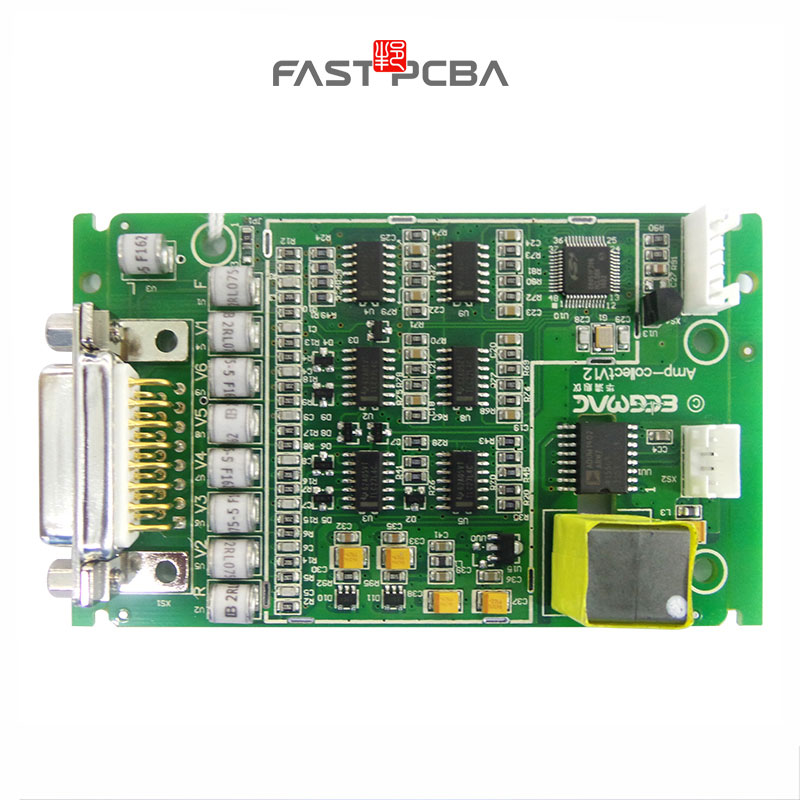

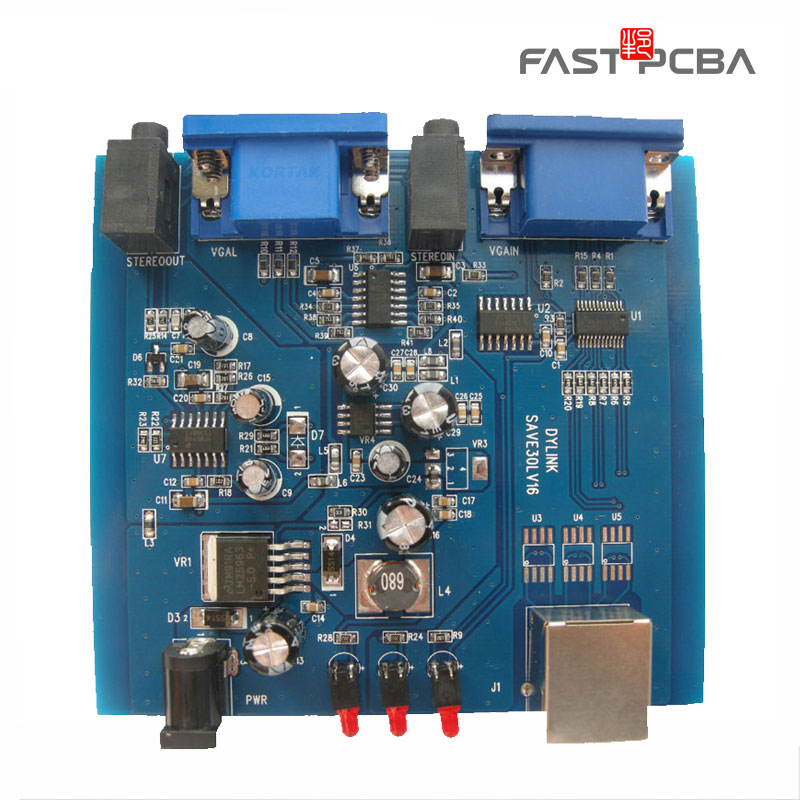

94v0 circuit board apply for LCD driver board

Place of Origin:

China

Base Material:

Fr4, alum

Copper Thickness:

1OZ

Board Thickness:

2mm

Min. Hole Size:

0.1mm

Min. Line Width:

3 mil

Min. Line Spacing:

3mil

Surface Finishing:

HASL

Certificate:

ISO9001

OUTLINE:

Drilling

Payment term:

T/T, Western Union, Paypal, L/C etc

When openingthe LCD shellyou will find several circuit boards. Among them, acircuit boardwith a large area and a relatively compact design is the main board of the liquid crystal display, which is usually called a driving board. The function of the driver board is to process and control the signal sent from the outside, and then send it to the LCD panel to display the image. The more important integrated circuits on the driver board are the main control chip (Sealer chip) and the microcontroller (MCU). The input interface of the driver board is connected to the main board of the computer main board graphics card through the connection line, and the output interface is connected to the LCD panel through one or two signaltransmittedcables .
