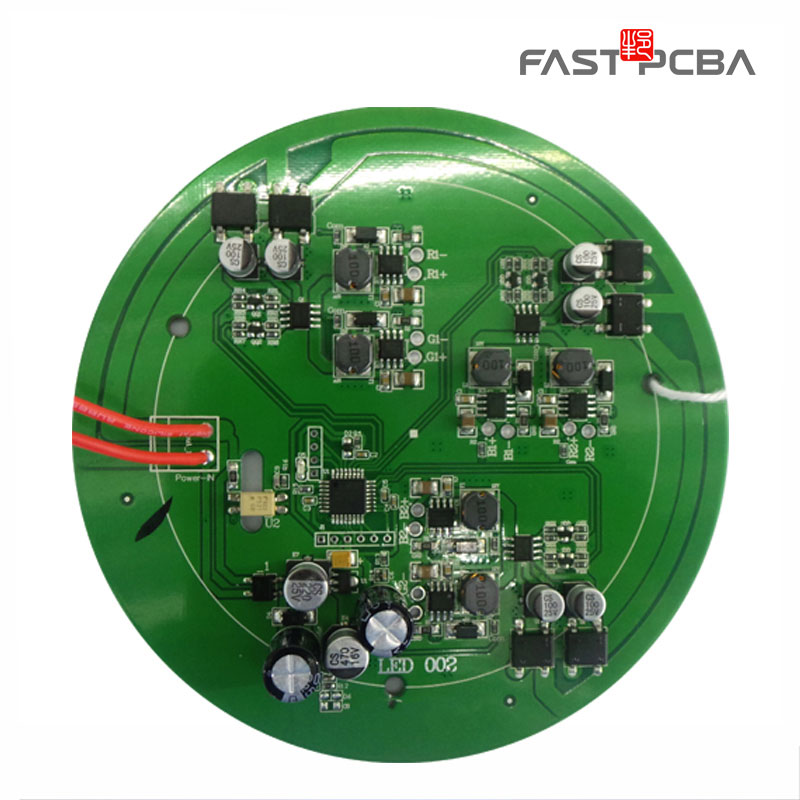

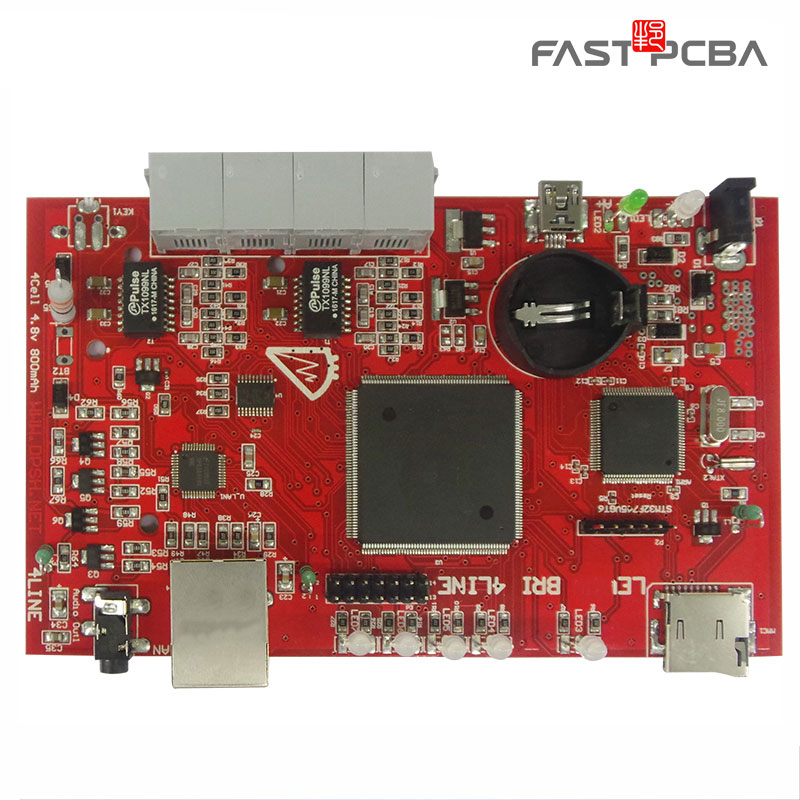

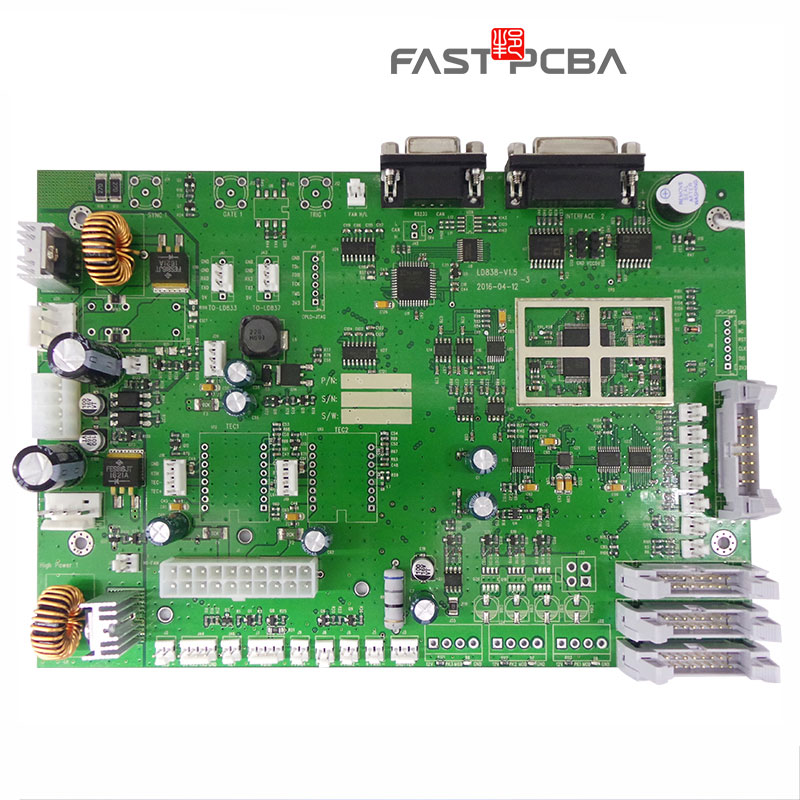

PCB for outdoor conditioning A11
PCB for outdoor conditioning A11
Product features: outdoor air conditioning
Usage range:
1. Public places such as offices, outdoor temporary command centers, open workshops, etc.;
2. Machine room, equipment instrument room and other places with high precision requirements;
3. A multi-purpose private house, kitchen, etc.;
4. Frequent relocation and rental building groups.

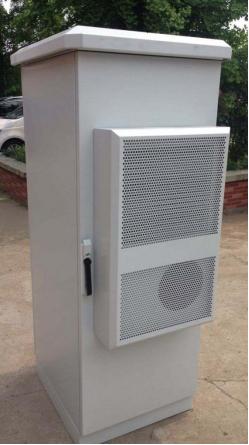

Application:outdoor air conditioning station for communication industry:
The outdoor unattended station, power system outdoor control cabinet, outdoor LED display control system, etc., which are specially used in the communication industry, need to maintain in the IP55 outdoor cabinet.
Advantage:
By cooling the air in the control cabinet while dissipating the heat inside the cabinet out of the cabinet while protecting the temperature-sensitive components;
Temperatures range from 40 to 55 degrees Celsius while other heat sink products do not perform as expected;
The screw is completely designed in the cabinet to prevent theft;
The air circulation inside and outside the cabinet is completely isolated, and the cabinet is well sealed to avoid intrusion of outside water, dust and insects.

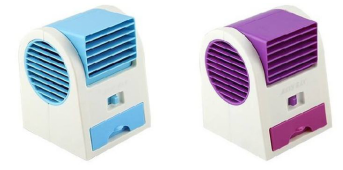

PCB application for portable outdoor air conditioner
In 2008, US commercial refrigeration manufacturers and the US Energy Conservation Propaganda Group jointly developed the first energy-saving standard for portable commercial refrigerators and air conditioners in the United States. Portable air conditionershave comprehensive performances such as light weight, environmental protection, energy saving, simple operation, convenient use and strongconvenience. It is operated by compressor and cooled by special design to cool off the cool air.
When the local cooling machine changes from gas to liquid, it releases a lot of heat. When the liquid is converted from liquid to a gaseous state, it absorbs a large amount of heat, and the portable air conditioner is designed according to this principle. The compressor compresses the gaseous refrigerant into a high temperature and high voltageliquid refrigerant, and then sends it to the condenser to blow out the cold air through the centrifugal fan. The portable air compressor body compressor, centrifugal fan, evaporator, air-cooled finned condenser and other devices are all available. The body is equipped with a power plug, and the base of the chassis is equipped with four casters, which can make the portable air conditioner move as desired.
About us:FASTPCBA have specialized in PCB&PCBA field for 15 years,with energetic marketing dep, strong engineering,skillful technician,professional QA and QC group,superior after-sale service.
Company Information:
Our aggressive business strategy enables us to deliver high competitive services for our diverse, competitive customer base. Through this strategy, we are able to make fast, flexible decisions in response to changing market conditions and create most value and benefits for customers.
As for Service, we provide 7days 24hours on-line professional Pre-sale, Selling and After-Sale service to solve any question about the order. Any time, any requirement will get Prompt Reply from our well-trained and friendly support staff.Wireless rear view system
Our main market is Europe, north USA,Australia, South America, and Asia. we will put much more effort to build connection with more customers in more area. All we want to do, is to connect the world by our products, to share the Value, Happiness and Achievement with more customers.Wireless rear view system

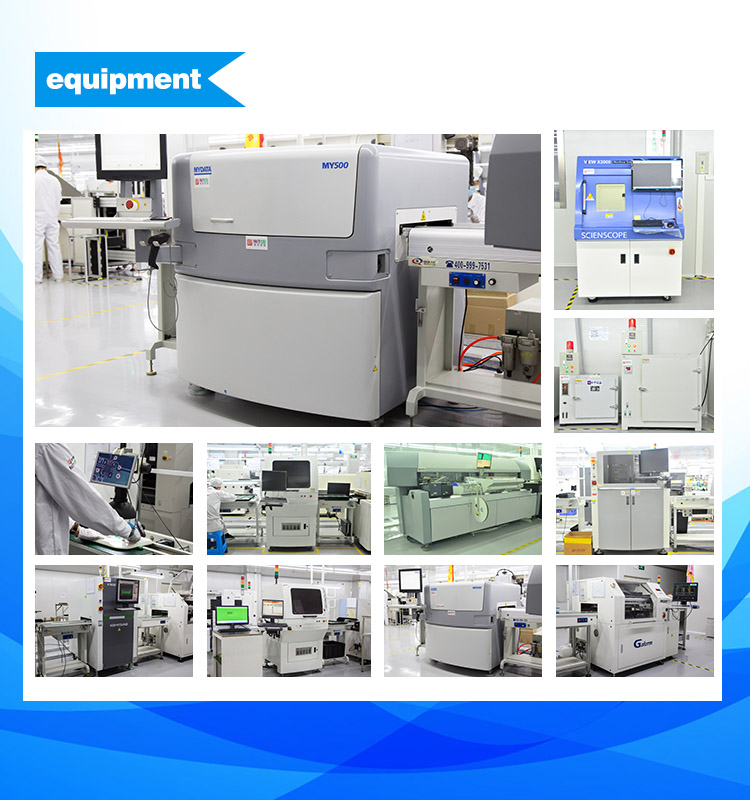

Our factory:
FASTPCBAhas extensive board assembly capability including:
- Automated and manual fine pitch SMT.
- Multi-layer printed circuit boards, flex boards
- BGA with x-ray and rework capability.
- Lead-free Assembly
- Wave soldering.
- In circuit testing.
- Functional testing.
- Conformal coating.
- Burn in.
- In-line AOI inspection system
- XRAY Inspection AOI Test
- 1 piece and small batch builds.
-
-
Certificates:
All of our PCB and PCBA areISO,TS approved.
Quality Guarantee is the basis of our clients’ trust.
-
-
Our chairman Luoxinhua pay much attention on exhibition,,that we have taken part in many exhibitionsbothatdomestic andabroad.
-

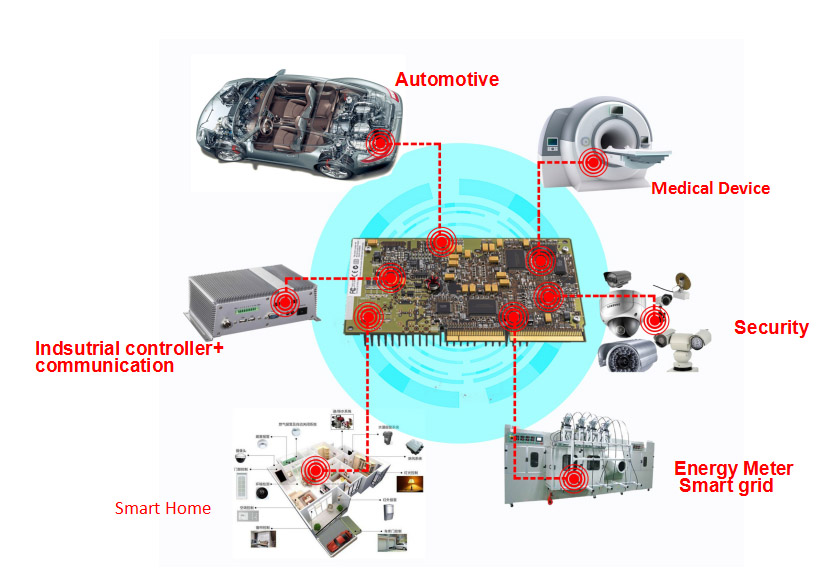

Application area
Without MOQ limits,deliver order fast.
FAQ:
1,What service do you have?
WeareOEMPCBandPCBAmanufacturer,provideturnkeysolutionincludingPCBfabrication,SMTandassemblyPCBAinsidetheenclosure,Functiontestingandothervalue-addedservice.
2,What are the main products of your PCB/PCBA services?
Our services are mainly for the industries including Medical,Automotive,Communication,Smart home,Safety protection.
3,What files required to get quotation from you?
For PCB, please provide the Gerber data/files and indication of related technical requirements as well as any special requirement if you have.
For PCBA(PCBwithsolderedcomponents),pleaseprovide Gerber files and also BOM (components list), and if you need us to do function test, please also provide the test instruction/procedure.
