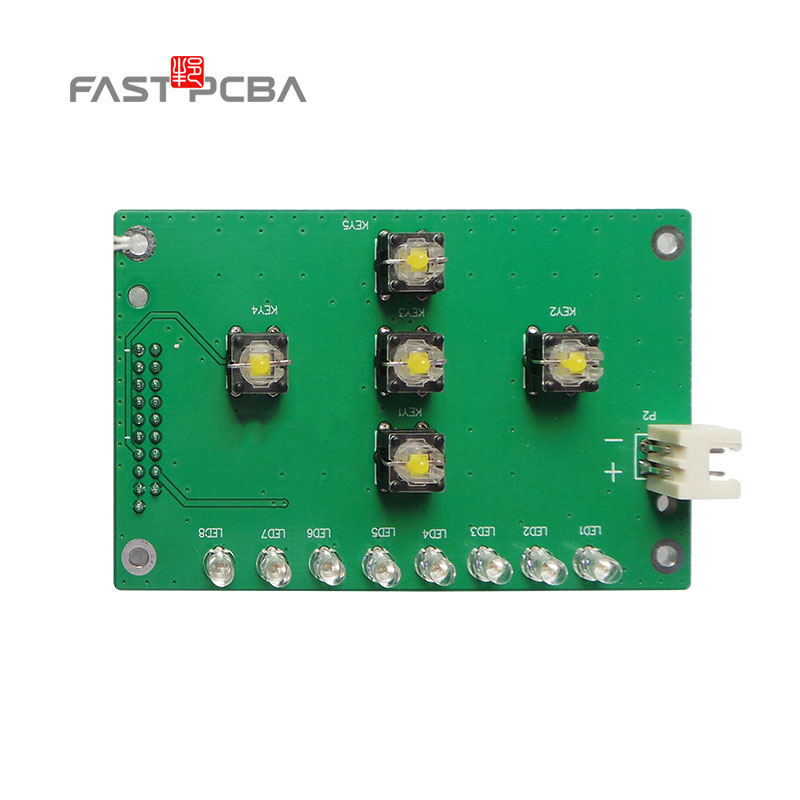

Prototype pcb assembly for cable path detector

Base Material:

Fr4

Copper Thickness:

1OZ

Board Thickness:

2mm

Min. Hole Size:

0.1mm

Min. Line Width:

3mil

Min. Line Spacing:

3mil

Surface Finishing:

OSP, HASL, Immersion Gold/ Ag/ Cu/ Tin

Certificate:

ISO9001

Testing Service:

X-RAY, ICT, AOI, Flying probe

Solder mask color:

Green

Prototypepcb assemblyforcable path detector is mainly used to detect the routing and buried depth of the direct buried cable. The product can also detect the routing and burial depth of cables and other underground metal pipelines (such as metal water pipes), and can also detect the failure of optical cables. The effect will vary depending on the material, insulationcondition, length and depth of the pipeline.
