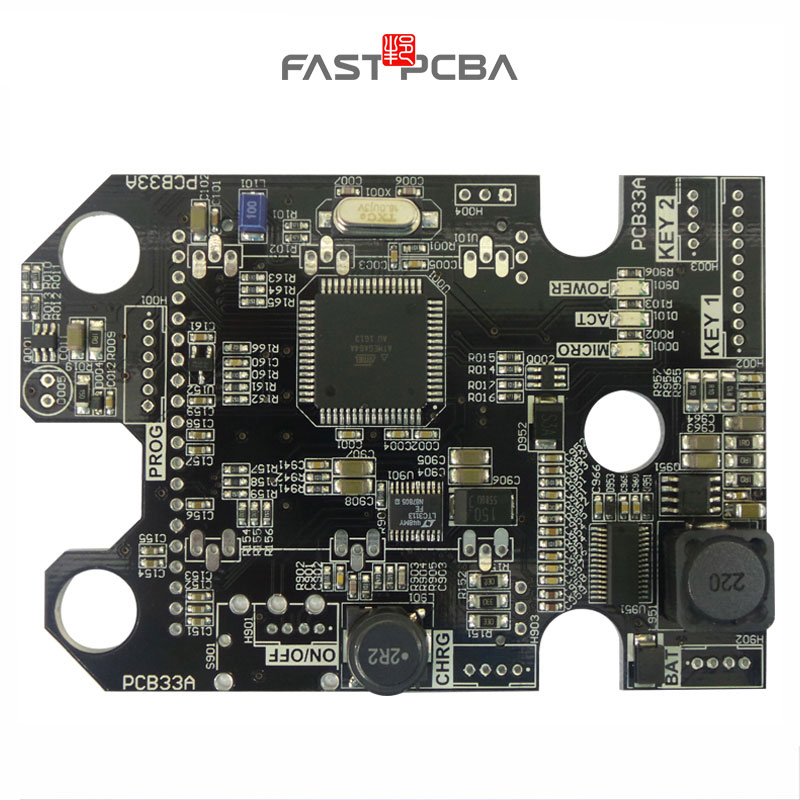

Smart electronic board for portable automotive axle load meter

Portable automotive axle loaders use aluminum alloy materials; ultra-thin inspection platen design. Lightweight and equipped with a detachable aluminum alloy slope for easy carrying. Fully sealed for greater environmental adaptability.

When the two boards are used in parallel, the single-axis axle weight and the weight of the vehicle can be measured by signal acquisition such as dynamic/static instruments or PLC. When four boards are used in parallel, static weight measurement can be performed on the two-axle automobile.

Brand Name:

fastpcba

Model Number:

fastpcba13

Base Material:

Fr4

Copper Thickness:

1OZ

Board Thickness:

0.2mm

Min. Hole Size:

0.1mm

Min. Line Width:

3mil

Min. Line Spacing:

3mil

Surface Finishing:

OSP, HASL, Immersion Gold/ Ag/ Cu/ Tin

Product name:

fastpcba

Certificate:

ISO9001, IATF16949, ISO13485

Testing Service:

X-RAY, ICT, AOI, Flying probe

Solder mask color:

Green\White\Red\Blue\Black

Layer:

1-48 Layers (include Rigid-Flex PCB)

Service:

Turnkey Assembly Service

MOQ:

1pcs

Size:

Customized Size

PCB Item:

bare pcb, component sourcing, pcb assembly& test & pack

Shipping:

via sea, air, express
